Flowserve Serck Audco Plug Valve for oil&gas isolation

For the biggest challenges of fluid motion control, customers worldwide rely on the engineering, project management and service expertise of . We Flowserve Plug Valve deliver more than the most complete portfolio of reliable valves, pumps and seals available.

Category:

Our global team of more than 18,000 employees in 55 countries can put together the total solution—from project planning to lifecycle maintenance programs to some of the most proven technology on the planet by Flowserve Plug Valve. All so you can get more from your capital investment. Exceed your operational goals. And always come through, when failure is not an option.

    Serck Audco was founded in 1869. Their long-established reputation is maintained by modern valve design and manufacturing techniques. Supplied and serviced around the world, Serck Audco products are used in industries as diverse as oil and gas, mining, food and chemical processing.

Why Select a Flowserve Plug Valve?

  •     PRESSURE BALANCED PLUG VALVES

PRESSURE BALANCED PLUG VALVES
PRESSURE BALANCED PLUG VALVES

 Large seating area enhances the Super-H resistance to erosion.

The wide area maximizes the effectiveness of sealant, so that any unlikely seat damage can solve injecting Serck Audco Sealant, restoring the valve zero leakage bubble tight shut-off capabilities without the need of seats replacement.

Moreover, Sealant can inject with the valve in any position and also under pressure, making the valve in-line maintainable.

  •     BALL VALVES

BALL VALVES
BALL VALVES

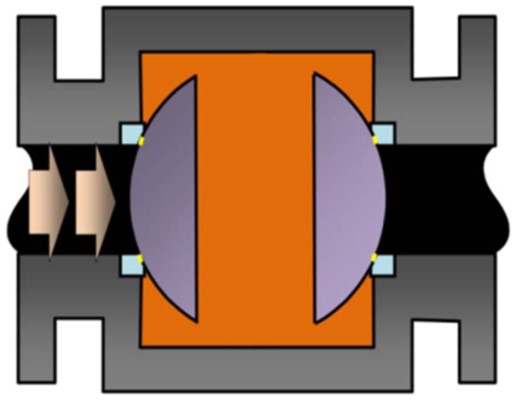

The thin seating area can be damaged by the erosion action of the media and the particles contained in it.

Difference between Sealant for Plug Valve and Sealant for Ball Valve

Sealants for Ball Valves valve generally designs to stop leakages on damaged ball valves. To achieve this and since Ball Valves have thin seating areas, sealants are thicker and include a higher percentage of solid fillers in an effort to plug seat damages and not be washed away by pressure.

Difference between Sealant for Plug Valve and Sealant for Ball Valve 1
Difference between Sealant for Plug Valve and Sealant for Ball Valve 1

Futhermore, Sealants for Flowserve Plug Valve designs to provide general lubrication and bubble tight sealing performance. Since plug valves have relatively wide seating areas, sealants can be thinner and still provide zero leakage over several operations.

Using a Ball Valve sealant on a Plug Valve is not recommended. Moreover,The thicker nature (and high percentage of solid fillers) of a Ball Valve sealant will increase operating torques due to the wide contact area between plug and body and even lead to valve jamming if the sealant dries up.

Difference between Sealant for Plug Valve and Sealant for Ball Valve 2
Difference between Sealant for Plug Valve and Sealant for Ball Valve 2



    Flowserve Plug Valve Products

    1)  Lubricated Plug Valves – SUPER H

BRAND: Serck Audco

The Super-H Lubricated Plug Valve is a rugged, pressure balanced plug valve designed for demanding oil and gas isolation applications where bubble tight shut-off and reliable operation are critically important.

Super-H Design

Basic design advantages of Flowserve Plug Valve such as metal-to-metal seats and a wide seating area, along with competitive pricing, have made plug valves the product of choice when the valve operates in a difficult or dirty service and/or needs to open against full differential pressure. The robust metal-to-metal seats ensure long valve life on any service, even in presence of solid particles in the line media.

 Features and Benefits

Benefits

  • Certainty of zero leakage sealing down the line, even with damaged metal seats.
  • Certainty of operation with low and consistent torque which is stable over long periods of time.
  • Minimal maintenance regime.
  • Full in-line maintainability even under full pressure and without any need of shut down.
  • Assured sealing to atmosphere.

How It Is Achieved

  • Precise seat mating procedures.
  • Effective sealant injection system combined with wide seating areas.
  • Pressure balanced plug as standard, with option of Protected Pressure balance®
  • Super LoMu Anti Friction Treatment on plug and stem.
  • Precise factory set plug loading
  • Provision for sealant injection for the seats
  • Provision for stem packing re-injection
  • Independent stem sealing design that can meet stringent fugitive emissions requirements.
  • All pressure seals in fire safe metal or graphite.

Design Range

  • Super-H valves are available in Regular, Short or Venturi, Pattern, in accordance with API 6D, API 599 and BS 5353. The different patterns vary in regard to face-to-face dimension and port area for a given size of valve.
  • Size Range:
  • DN 15 to 1050
  • NPS ½ to 42
  • Pressure Class Range:
  • PN 20 to 420
  • Class 150 to 2500
  • API 2000 to 10000

 Standard

  • API 6D – Specification for pipeline valves
  • API 6A – Specification for wellhead equipment
  • ISO 14313 – Petroleum and natural gas industries-Pipeline valves
  • ISO 10423 – Petroleum and natural gas industries-Wellhead equipment
  • API 599 – Metal plug valves – flanged, threaded and welding ends
  • BS 5353 – Specification for steel plug valves
  • ANSI B16.10 & BS 2080. – Face-to-face and end-to-end dimensions

Sample Applications

  • Bypass Equalizing Valve  : To resist the erosion caused by full differential pressure openings on a transmission line, it will seal to protect the main line valve
Bypass Equalizing Valves
Bypass Equalizing Valves
  • High Pressure Gas Isolation  :  Bubble tight shut-off on one of the more searching medias
High Pressure Gas Isolation
High Pressure Gas Isolation
  • Underground Storage : Protected metal seating to resist impurities and give zero leakage even on the highest pressures

Underground Storage

    Underground Storage
  • Slurry Isolation Extremely abrasive services, a robust valve with no cavities
Slurry Isolation
Slurry Isolation

         Reference



Ref super-h

     2)  Lubricated Plug Valves – DOUBLE ISOLATION

BRAND: Serck Audco

The Double Isolation Lubricated Plug Valve is a reliable, double isolation plug valve with two independent obturators in a single body. It is ideal for double block and bleed applications.

Design Features

  • Same face-to-face as one valve.
  • In-line emergency stem sealing
  • In-line sealant injection point
  • Choice of mounting positions for actuators and handwheels.
  • Bleed port.
  • Bleed valve flange interface

 Benefits

  •  Improved plant and personnel safety assured by a double isolation design that allows the operator to verify valve isolation before carrying out maintenance
  • A cost-, space- and weight-saving alternative to a double block and bleed system using two valves in a series
  • Ease of installation from a compact design with the same face-to-face dimensions as a single valve, often replacing it without the need for pipe work modifications
  • Greater process control via a pressure balanced design that provides a true bubble-tight double isolation capability within a single valve body

      Design Range

design range
design range

      Standard

  • API 6D – Specification for pipeline valves
  • API 6A – Specification for wellhead equipment
  • ISO 14313 – Petroleum and natural gas industries-Pipeline valves
  • ISO 10423 – Petroleum and natural gas industries-Wellhead equipment
  • API 599 – Metal plug valves – flanged, threaded and welding ends
  • BS 5353 – Specification for steel plug valves
  • ANSI B16.10 & BS 2080. – Face-to-face and end-to-end dimensions

     Sample Applications

The valves illustrated are 8” class 1500 Double Isolation Plug Valves in 25% Cr. Duplex with hub ends. The valves are installed on a flowline header application. Morover, in this case one isolation is by electric actuator and the other isolation is by gear operator. Criteria for selection: true bubble tight isolation and space and weight saving over conventional ball or gate valves and minimum maintenance.

The valves illustrated are 4” class 300 flanged in Carbon Steel and Stainless Steel. The application is on a fuel skid and both plugs on each valve are lever operated. Criteria for selection: double block and bleed with true bubble tight isolation for reasons of safety, reliability and minimum maintenance.

     Reference

Ref double isolation
Ref double isolation

     3) Lubricated Plug Valves – TWIN ISOLATION

TWIN ISOLATION
TWIN ISOLATION

  BRAND:  Serck Audco

The Twin Isolation Lubricated Plug Valve is a reliable, double isolation plug valve with two independent obturators in a single body. It is ideal for double block and bleed applications.

Features and Benefits

  • Improved plant and personnel safety assured by a double isolation design that allows the operator to verify valve isolation before carrying out maintenance
  • A cost-, space- and weight-saving alternative to a double block and bleed system using two valves in a series
  • Ease of installation from a compact design with the same face-to-face dimension as a single valve, often replacing it without the need for pipe work modifications
  • Greater process control via pressure balanced design that provides a true bubble-tight double isolation capability within a single valve body

     Sample Applications

Typical Installations

Configuration using ball valves
Configuration using ball valves

Gas Transportation – Gas Compression Station

Configuration using twin isolation plug valves
Configuration using twin isolation plug valves



Sample Applications - twin

Sample Applications twin 1
The valves illustrated are 6” class 2500 with hub ends, in carbon steel, manually operated.
                                                       Criteria for selection: bubble tight isolation and compact design.
Sample Applications twin 2
The valves illustrated are 12” class 2500 with hub ends.
                                                 Criteria for selection: tight shut off, safety reliability and low maintenance.

         Reference

      4) Lubricated Plug Valves – SUPER NORDSTROM



SUPER NORDSTROM
SUPER NORDSTROM

BRAND:  Nordstorm

Well-tested, economical line of super-steel plug valves that provides dependable operations and eliminates the need for field readjustments.

Features and Benefits

  • Greater process control provided by the bubble-tight shutoff and predictable torque
  • Increased uptime provided by the precisely controlled vertical lifting of the plug, which eliminates its wedging without affecting tight shutoff
  • Durable performance via the specially shaped weather seal that protects the stem, gland and packing from hostile environments and corrosion
  • Reliable operation enabled by the Sealdport™ sealant grooving system, designed to give complete distribution of pressurized sealant to seating surfaces

       Design Range

  • Size Range:

DN 15 to 100

NPS ½ to 4

  • Pressure Class Range: Class 150 to 600
  • Temperature:-29°C to 177°C (-20°F to 350°F)
  • Seating Material:Metal-to-metal
  • Operator Types:Wrench operatedGear operatedLess gearingActuated Valve Ends:Flange x flangeButtweld x buttweldThreaded end

    Standard

  • API 6D
  • ASME B16.5
  • ASME B16.10
  • ASME B1.20.1
  • ASME B16.11
  • ASME B16.25
  • ASME B16.34
  • ASME B18.2.1
  • ASME B18.2.2
  • API 6A
  • API 6FA
  • API 599
  • MSS SP-6
  • MSS SP-25
  • MSS SP-55
  • MR0175 (NACE valves)
  • CSA Z245.15

        Industry Sectors

  • Pulp & Paper
  • Steel & Primary Metals
  • Food & Beverage
  • Corn Wet Milling & Ethanol
  • Other Industries
  • Basic (Organic & Inorganic)
  • Petrochemicals
  • Water
  • Waste Water
  • Agriculture
  • Water Management
  • Upstream Exploration & Production
  • Midstream Transportation
  • Downstream Processing
